BKT-3440-1.5-2

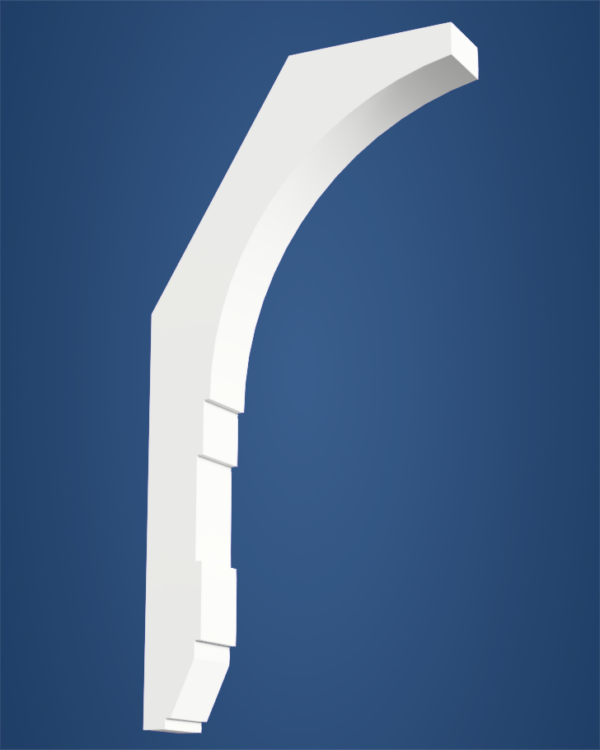

BKT-3440-1.5-2 is a tall, decorative cellular PVC bracket formed as a single sweeping curve, with a narrow square-ended top, an open back and a lower front edge cut with a series of small steps above an angled foot. Its height is twice its projection, and it comes in five sizes from 16″ x 32″ to 36″ x 72″ (projection x height).
BKT-3440-1.5-2 PVC Bracket
Some of the simplest traditional supports were curved knee braces: a single shaped timber sweeping from the wall up to the underside of an overhang. Their flowing lines are still a quietly elegant detail on classic homes from the Coastal U.S. to the Caribbean. BKT-3440-1.5-2 brings that sweeping form to cellular PVC. It is a decorative bracket and, like most HB brackets, non-structural, while staying true to the design and proportioning of traditional wood brackets.
One continuous sweep
Instead of an arm, a leg and a separate brace, BKT-3440-1.5-2 is shaped as one continuous curve. Its front edge sweeps in a long arc from the base of the wall leg up to a narrow, square-ended top, and the back is cut away on a long diagonal, so the bracket touches the wall only along its lower section and reads as a slim, open form. The upper end is left plain, while the lower front edge is worked with a series of small steps before finishing in an angled foot with a short squared toe.
Its light, open silhouette suits places where a heavier bracket would feel bulky, such as narrow walls, posts, slim columns and shallow overhangs. For a deeper sweep with a full top arm, compare BKT-3221-4-5-2, or for a tall bracket with a separate brace, see BKT-3412-4-7-1. More shapes are available in the HB PVC brackets range.
Main body and end profile
Most HB brackets combine a main body with two end profiles, one at the arm and one at the foot. BKT-3440-1.5-2 is listed with a single end profile, VP-4082-6, which shapes the lower end of the bracket; its SKU is BKT-3440-1.5-2VP-4082-6. HB’s design tree includes thousands of main bodies and end profiles, so the HB team can advise if you need a different lower detail.
Material, installation and finishing
BKT-3440-1.5-2 is made from cellular PVC using HB Elements’ patented manufacturing process. It is installed with the cleat and adhesive included with it and requires very little preparation before painting. Painting is optional, but most HB brackets are painted to conceal caulking and nail-hole filler and to match the surrounding trim. The bracket is decorative and must not be used to carry structural loads.
Ordering and sizing help
Not sure which size fits? Email your plans as a PDF to info@hbelementsinc.com and call (954) 784-8216 to talk them through with HB. You can also check dimensions in the Brackets Spec Sheet, look at alternative HB PVC bracket designs and see installation demonstrations in the HB Elements video library.
| thickness-projection-height | 3″ x 16″ x 32″, 4″ x 18″ x 36″, 5″ x 24″ x 48″, 5″ x 30″ x 60″, 6″ x 36″ x 72″ |
|---|---|
| VP | VP-4082-6 |
