BKT-4401-4020-CN.1

BKT-4401-4020-CN.1 is a decorative cellular PVC bracket with an open corner and broad curved brace, a small step and scooped, wave-like curve under the arm tip, and a foot that steps twice before a long, clean taper. Projection equals height, and it is available in five sizes from 18″ x 18″ to 42″ x 42″.

SKU: BKT-4401-4020-HP-4402-6-VP-4021-6 Category: Tag:
Description

BKT-4401-4020-CN.1 PVC Bracket

Traditional carpenters often lavished their detail on the end of a bracket’s arm, the part seen most clearly against the soffit, while keeping the foot simple. That balance is still a feature of many classic homes from the Coastal U.S. to the Caribbean. BKT-4401-4020-CN.1 follows the same principle in cellular PVC. It is an ornamental bracket and, like most HB brackets, non-structural, but it is shaped to the proportions of a traditional wood bracket.

Detail at the arm, simplicity at the base

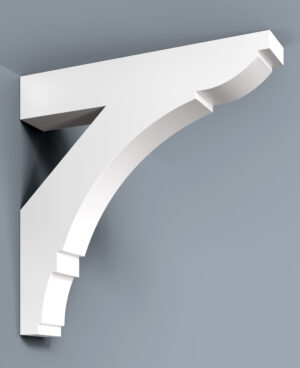

BKT-4401-4020-CN.1 is another version of HB’s open BKT-3021-5-8 main body, with an arm and leg of equal length and a broad curved brace that leaves the corner open. Its character comes from the arm tip: a small step is followed by a scooped, wave-like curve that rises to the squared end. The foot is deliberately plainer, with two small steps on the front edge and then a long, straight taper down to the base.

Concentrating the detail at the arm tip makes the bracket read well from below, where it is usually seen under eaves and porch roofs, while the clean foot keeps the lower half calm. Other versions of the same open body include BKT-4260-4470-CN.1 with coves at both ends and BKT-4060-4060-CN.1 with square, stepped ends. Explore the full range on the HB PVC brackets page.

Main body and end profiles

The ends of this bracket are formed by end profile HP-4402-6 at the arm and VP-4021-6 at the foot, as recorded in its SKU, BKT-4401-4020-HP-4402-6-VP-4021-6. HB pairs its main bodies with end profiles drawn from thousands of options, so different end details can be specified on request; the HB team will advise.

Material, installation and finishing

Cellular PVC, shaped with HB Elements’ patented manufacturing process, gives BKT-4401-4020-CN.1 its clean lines. It goes up with the cleat and adhesive included in the box and is ready to paint after very little preparation. Paint is optional; most HB brackets are painted to match the trim and disguise caulking and nail-hole filler. This bracket is for decoration only and is not intended to carry any structural load.

Ordering and sizing help

Send your plans in PDF form to info@hbelementsinc.com and call (954) 784-8216 so an HB representative can confirm the size and end details with you. Useful references include the Brackets Spec Sheet, the PVC brackets page and the installation videos in the HB Elements video library.

Additional information
thickness-projection-height3″ x 18″ x 18″, 4″ x 24″ x 24″, 5″ x 30″ x 30″, 6″ x 36″ x 36″, 6″ x 42″ x 42″
HPHP-4402-6
VPVP-4021-6
