RT-4470-3

RT-4470-3 is a PVC rafter tail that stays at full depth past its midpoint, then drops into a deep slanted step, rises in a bowed curve and ends at a small notch under the square tip. Keeping the detail toward the end gives a sturdy tail with a compact, carved finish. Nine standard sizes for HB soffit systems or standalone use.

SKU: RT-4470-3 Category: Tag:
Description

RT-4470-3 PVC Rafter Tail

Holding a rafter tail at full depth for longer makes it look heavier and more substantial, with the shaping concentrated where it projects furthest. RT-4470-3 is designed that way. It is a decorative cellular PVC tail that recreates exposed rafter ends; the structural rafters stay hidden behind the soffit.

Detail held toward the tip

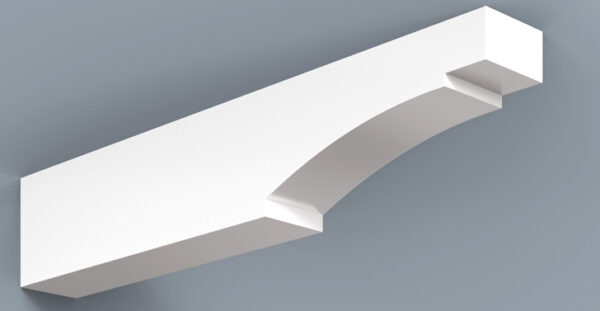

RT-4470-3 is a plain, full-height block for a little over half its length. A deep slanted step then starts a short, bowed curve that rises quickly and flattens before a small notch, which leaves a ledge and a square tip under the straight top edge.

It shares its step, curve and notch with RT-4441-6, which starts the sequence about a third of the way out and so has a longer curve. For a bowed curve that starts at an angled break instead of a step, see RT-4460-4. RT-4470-3 suits larger coastal, British West Indies and Mediterranean homes and also works for gable lookouts or beneath cantilevered decks.

Material and fitting

RT-4470-3 is made from cellular PVC with a hollow core on HB Elements’ patented fabrication system. It is ornamental trim.

Every tail arrives with its own cleat and adhesive. Where the overhang is shallow, trim it before fitting; it mounts to cellular PVC soffit as well as stucco, wood or cement fiber, and needs only a light prep before the paint coat.

Pairing with HB panels

Over a shiplap V-groove ceiling such as VGP-SL-5-12, the solid tails with their carved ends add weight to the eave and hide joints between panels. HB fascia and frieze board complete the soffit ceilings range; tails are sold separately as well.

Ordering and sizing help

For a recommendation on sizes, share your drawings with HB at info@hbelementsinc.com or phone (954) 784-8216. Standard measurements sit in the Rafter Tails Spec Sheet; the full line is on the HB rafter tails page.

Additional information
soffit-systems-variations3 1/2″ x 5 1/2″ x 24″, 3 1/2″ x 5 1/2″ x 30″, 3 1/2″ x 5 1/2″ x 36″, 4 1/2″ x 9 1/2″ x 24″, 4 1/2″ x 9 1/2″ x 30″, 4 1/2″ x 9 1/2″ x 36″, 4″ x 7 1/2″ x 24″, 4″ x 7 1/2″ x 30″, 4″ x 7 1/2″ x 36″
