BKT-3221-4-5-3
HB Brackets, though typically non-structural, stay true to the design and proportioning of traditional load bearing wood brackets.The versatility of cellular PVC and HB’s patented manufacturing process enable great flexibility in design and scale as well as excellent durability. Installation using the included cleat and adhesive leaves very little prep work to ready for paint. HB’s bracket design tree is composed of thousands of unique main body and end profiles allowing for limitless design options.
BKT-3221-4-5-3 PVC Bracket
Overhangs on early timber homes were often held up by deep, solid brackets, and their sweeping profiles became a hallmark of the classic houses seen from the Coastal U.S. to the Caribbean. BKT-3221-4-5-3 recreates one of those sweeping profiles in cellular PVC. It is designed as an architectural accent rather than a support: like most HB brackets it is non-structural, while still following the design and proportions of traditional wood brackets.
Profile and end details

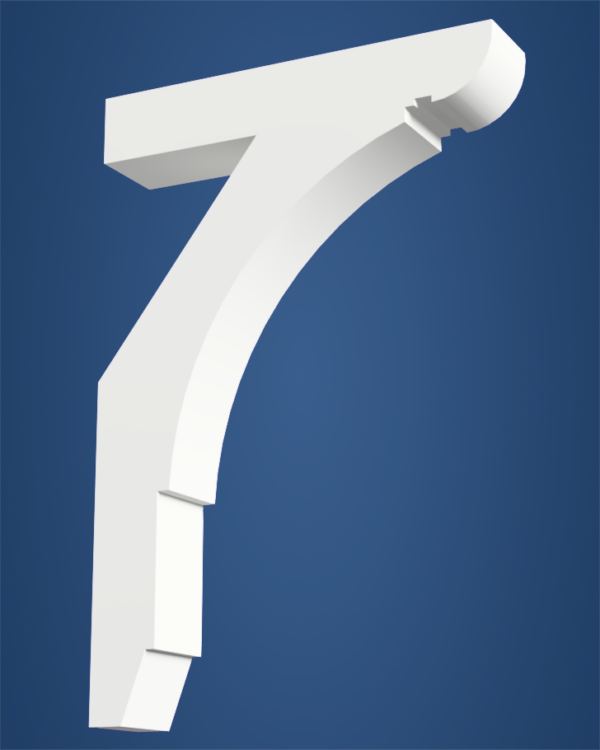

The bracket is a single, continuous shape. Its thick top arm turns downward in a long, generous curve that becomes the wall leg, and the back is cut away on a slope beneath the arm, so the bracket only meets the wall at the top of the arm and along the lower leg. The outer end of the arm is rounded over in a smooth curve, with a small notched detail on the underside just before the curve begins. At the bottom, the leg has two small steps and then tapers to an angled foot.
Its rounded tip softens the strong outline, making it a good fit for relaxed, coastal-style elevations as well as larger, more formal homes. BKT-3221-4-5-2 uses the same main body with the end treatments reversed in character, pairing a stepped arm tip with a rounded foot, so the two are worth comparing side by side. For other bracket shapes, explore the HB PVC brackets range.
Main body and end profiles
HB brackets combine a main body with a pair of end profiles. In the SKU BKT-3221-4-5-3-HP-4222-4-VP-4011-4, the BKT-3221-4-5 main body is paired with end profiles HP-4222-4 and VP-4011-4. HB’s design tree contains thousands of main bodies and end profiles, so ask the HB team if you would like to see this bracket with different ends.
Material, installation and finishing
Made from cellular PVC with HB Elements’ patented manufacturing process, BKT-3221-4-5-3 is installed using its included cleat and adhesive and needs very little preparation before painting. You can leave it unpainted, although most HB brackets are painted to hide caulking and nail-hole filler and to match the surrounding trim color. This bracket is decorative and is not designed to bear structural loads.
Ordering and sizing help
Send your plans as a PDF to info@hbelementsinc.com, then call (954) 784-8216 to review the size and end details with an HB representative. The Brackets Spec Sheet covers HB’s standard bracket sizes, the PVC brackets page shows more designs, and installation is demonstrated in the HB Elements video library.
| thickness-projection-height | 3″ x 16″ x 24″, 3″ x 24″ x 36″, 5″ x 30″ x 45″, 6″ x 36″ x 54″, 6″ x 42″ x 63″ |
|---|---|
| HP | HP-4222-4 |
| VP | VP-4011-4 |
