BKT-3221-5.5-7-3
BKT-3221-5.5-7-3 is a substantial, decorative cellular PVC bracket with a deep top arm that sweeps down into the wall leg, an open back, a clean square-cut arm tip and a stepped, tapered foot. It is 1.5 times as tall as it projects and comes in five sizes from 16″ x 24″ to 42″ x 63″ (projection x height), 3″ to 6″ thick.
BKT-3221-5.5-7-3 PVC Bracket
Heavy timber brackets were once essential for carrying wide eaves, and the weightier the overhang, the more substantial the bracket had to look. That sense of strength is part of what makes brackets such a familiar detail on classic homes from the Coastal U.S. to the Caribbean. BKT-3221-5.5-7-3 delivers that substantial appearance in cellular PVC. Like most HB brackets, it is non-structural, but it stays faithful to the design and proportioning of a load-bearing wood bracket.
A heavier take on the open-back sweep

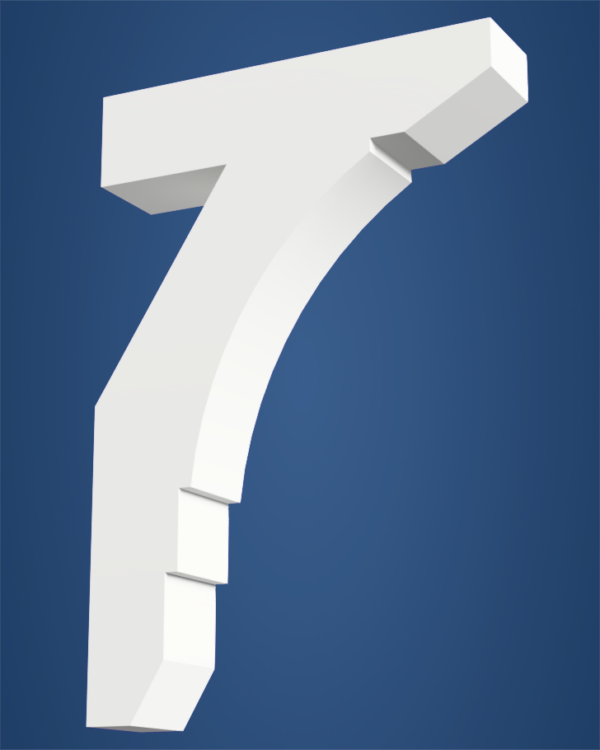

BKT-3221-5.5-7-3 is built on the BKT-3221-5.5-7 main body. In HB’s product render its top arm is noticeably deep, and it bends down in one wide curve to form the wall leg, with the back cut away on a slope below the arm. The ends are kept simple and geometric: the arm finishes in a plain, square-cut tip with a single small step where the curve meets it, and the foot of the leg has two small steps before tapering to an angled base.
The deep arm and restrained, square-cut ends give it a solid, architectural presence, well suited to wide overhangs, porches and larger façades. If you like this outline but prefer a lighter arm, compare it with BKT-3221-4-5-2 and BKT-3221-4-5-3, which are built on the BKT-3221-4-5 main body. The full collection is shown on the HB PVC brackets page.
Main body and end profiles
Each HB bracket pairs a main body with two end profiles. The SKU BKT-3221-5.5-7-3-HP-4002-5-VP-4025-8 combines the BKT-3221-5.5-7 main body with end profiles HP-4002-5 and VP-4025-8. HB’s design tree includes thousands of main bodies and end profiles, so the HB team can suggest other end options if needed.
Material, installation and finishing
This bracket is manufactured in cellular PVC using HB Elements’ patented process. Its included cleat and adhesive are used for installation, and very little surface preparation is needed before paint. Paint is optional, but HB brackets are most often painted to conceal caulking and nail-hole filler and to match the trim. BKT-3221-5.5-7-3 is decorative and should never be used as a structural member.
Ordering and sizing help
Email a PDF of your plans to info@hbelementsinc.com and call (954) 784-8216 so an HB representative can help you finalize size and end details. You can also download the Brackets Spec Sheet, view more HB PVC bracket designs, or learn how the brackets go up in the HB Elements video library.
| thickness-projection-height | 3″ x 16″ x 24″, 4″ x 24″ x 36″, 5″ x 30″ x 45″, 6″ x 36″ x 54″, 6″ x 42″ x 63″ |
|---|---|
| HP | HP-4002-5 |
| VP | VP-4025-8 |
