RT-4221-5

HB PVC Soffit Systems typically have 4 components Ð fascia, soffit panel, frieze board and rafter tails. These components can be used together as a system or individually. Our v-groove soffit panel and rafter tails create the appearance of a traditional timber framed roof with tongue and groove roof decking.

SKU: RT-4221-5 Category: Tag:
Description

RT-4221-5 PVC Rafter Tail

Adding a second step ahead of a rounded end gives a rafter tail a more layered, hand-cut look. RT-4221-5 uses two small steps along its underside before finishing with a curve, creating a series of shadow lines beneath the eave. It is an ornamental cellular PVC tail that imitates exposed rafter ends while the roof structure stays hidden.

Two steps before the curve

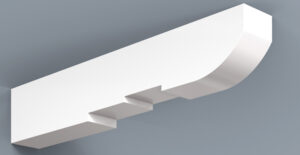

RT-4221-5 is full depth for a little over a quarter of its length. A first slanted step lifts the underside, a short level run follows, and a second slanted step near mid-length lifts it again. The tail then continues level until the end, where a convex curve rises to a short square face at the tip.

Its single-step counterpart is RT-4220-4, which shares the same rounded end with a flat face. The extra step on RT-4221-5 adds a second shadow line and a more detailed silhouette. For a multi-step tail with an angled end instead of a curve, see RT-4022-8. It suits coastal, British West Indies and Key West homes, and also works for gable lookouts and cantilevered decks.

Material and fitting

RT-4221-5 is hollow-core cellular PVC made by HB Elements on its patented fabrication system. It is a trim piece only and is not designed to bear loads.

A cleat and adhesive come with each tail. If needed, cut it to length on site, then fix it to cellular PVC soffit, stucco, wood or cement fiber. It takes paint with minimal prep.

Completing the soffit

Pair RT-4221-5 with HB panels such as the VGP-SL-5-08 shiplap V-groove panel so the tails cover the joints and give the overhang a timber-framed rhythm. Fascia and frieze board from HB complete the soffit system; all components are also available individually.

Ordering and sizing help

Email HB your plans in PDF form at info@hbelementsinc.com or call (954) 784-8216 to settle sizes. The Rafter Tails Spec Sheet lists standard dimensions; every profile is shown on the HB rafter tails page.

Additional information
soffit-systems-variations3 1/2″ x 5 1/2″ x 24″, 3 1/2″ x 5 1/2″ x 30″, 3 1/2″ x 5 1/2″ x 36″, 4 1/2″ x 9 1/2″ x 24″, 4 1/2″ x 9 1/2″ x 30″, 4 1/2″ x 9 1/2″ x 36″, 4″ x 7 1/2″ x 24″, 4″ x 7 1/2″ x 30″, 4″ x 7 1/2″ x 36″
