RT-4420-5
RT-4420-5 is a PVC rafter tail with a deep step about a third of the way along, a long level run at reduced depth and a hollow, cove-shaped end. The step slims the tail early, and the cove gives the tip a soft scooped finish. Nine standard sizes for HB soffit systems or standalone use.
RT-4420-5 PVC Rafter Tail
Pairing an early step with a hollowed tip gives a rafter tail a slimmer body and a softly carved end. RT-4420-5 is designed around that combination. Made in cellular PVC, it is decorative trim that suggests exposed rafters beneath the eave rather than forming part of the roof.
Step, level run, cove

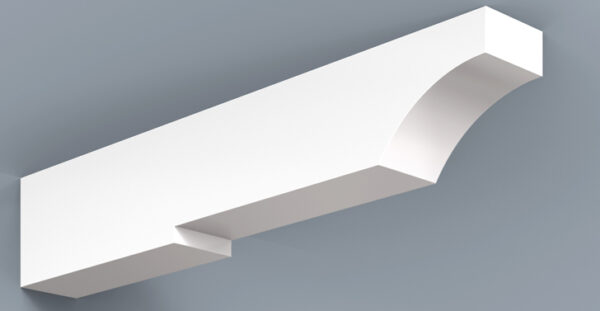

RT-4420-5 is full height for about a third of its length, where a deep step lifts the underside. It then runs level at the reduced depth for a long stretch, and near the end a concave quarter-circle hollows out the tip, rising to a sharp corner at the top edge.
Compare it with RT-4420-1, which keeps full depth almost to the end and adds a small notch beneath its cove, and with RT-4401-1, a cove end on a plain body. RT-4420-5 suits coastal, Mediterranean and Florida Vernacular homes, and also serves as a gable lookout or a detail under a deck.
Material and fitting
HB Elements makes RT-4420-5 from cellular PVC with a hollow core, using its patented fabrication system. It is non-structural trim.
A cleat and adhesive are included. The tail can be shortened on site and mounted against cellular PVC soffit or over stucco, wood or cement fiber, with only light prep before painting.
Pairing with HB panels
Over a shiplap V-groove ceiling such as VGP-SL-5-10, the cove ends add a soft accent at each rafter, and the tails hide joints between panels. HB fascia and frieze board complete the soffit ceilings range; tails are also sold separately.
Ordering and sizing help
HB can work out sizes from your drawings: email a PDF to info@hbelementsinc.com or call (954) 784-8216. The Rafter Tails Spec Sheet lists standard dimensions, and more profiles are on the HB rafter tails page.
| soffit-systems-variations | 3 1/2″ x 5 1/2″ x 24″, 3 1/2″ x 5 1/2″ x 30″, 3 1/2″ x 5 1/2″ x 36″, 4 1/2″ x 9 1/2″ x 24″, 4 1/2″ x 9 1/2″ x 30″, 4 1/2″ x 9 1/2″ x 36″, 4″ x 7 1/2″ x 24″, 4″ x 7 1/2″ x 30″, 4″ x 7 1/2″ x 36″ |
|---|
