RT-4602-6
RT-4602-6 is a PVC rafter tail with a small square notch just out from the wall, from which a long S-shaped wave flows across the underside to a slim square tip. The notch gives the wave a crisp starting point while keeping the line fluid. Nine standard sizes for HB soffit systems or standalone use.
RT-4602-6 PVC Rafter Tail
A tiny cut at the start of a long wave works like a pencil mark, showing exactly where the curve begins. RT-4602-6 adds that small notch to an otherwise flowing tail. It is a decorative cellular PVC tail that imitates exposed rafter ends while the roof framing stays concealed.
A notch and a long wave

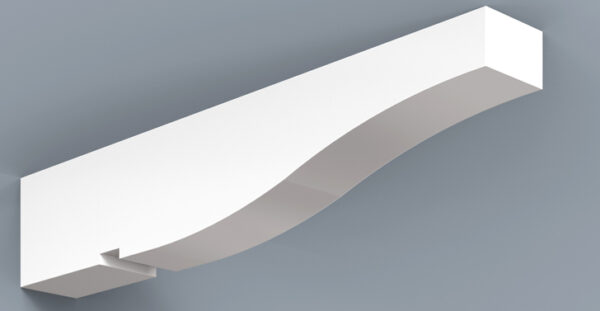

RT-4602-6 is full height for a short distance from the wall, where a small square notch marks the underside. A long S-curve follows, hollow first and then rounding over, and rises gradually across most of the tail to a slim square tip under the straight top edge.
Without the notch, the same long wave appears on RT-4601-7. RT-4611-7 places a larger, hooked notch at a similar point. RT-4602-6 suits coastal, Mediterranean and Key West homes, and also works for gable lookouts or under a cantilevered deck.
Material
HB Elements molds and fabricates RT-4602-6 in cellular PVC, leaving a hollow core, under its patented process. Its role is visual, never structural.
Fixing takes the supplied cleat plus a bead of the included adhesive. If the overhang is short, cut the tail back first; mount it to PVC soffit, stucco, wood or cement fiber, then paint once it is clean.
Soffit pairing
The flowing tails sit well over a nickel joint ceiling such as NJP-SL-5-08, where they also mask the joints between panels. Add HB fascia and frieze board for the complete PVC soffit system, or order the tails alone.
Ordering and sizing help
Drawings in PDF can go to info@hbelementsinc.com for a sizing recommendation, or call the team on (954) 784-8216. For the numbers, download the Rafter Tails Spec Sheet; for more wave profiles, browse the HB rafter tails page.
| soffit-systems-variations | 3 1/2″ x 5 1/2″ x 24″, 3 1/2″ x 5 1/2″ x 30″, 3 1/2″ x 5 1/2″ x 36″, 4 1/2″ x 9 1/2″ x 24″, 4 1/2″ x 9 1/2″ x 30″, 4 1/2″ x 9 1/2″ x 36″, 4″ x 7 1/2″ x 24″, 4″ x 7 1/2″ x 30″, 4″ x 7 1/2″ x 36″ |
|---|
