RT-4611-7
RT-4611-7 is a PVC rafter tail with a hooked notch set close to the wall, a short level run and a long S-shaped wave that rises gently to a slim square tip. Starting early gives the wave room to stretch across most of the tail. Nine standard sizes for HB soffit systems or standalone use.
RT-4611-7 PVC Rafter Tail
Moving a notch toward the wall leaves more of the rafter tail for the wave that follows. RT-4611-7 uses that space for a long, relaxed S-curve with a crisp hooked notch at its start. It is a decorative cellular PVC tail that recreates exposed rafter ends; the structural framing stays out of view.
An early notch and a long wave

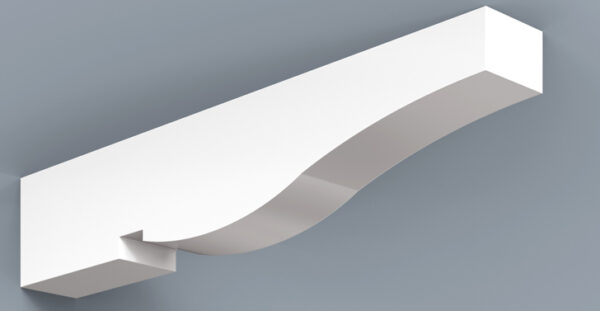

A short distance from the wall, a hooked notch cuts into the underside of RT-4611-7, followed by a brief level run. The underside then flows into a long S-curve that dips, rolls over and rises gradually to a slim square tip under the straight top edge.
It is the long member of a trio with RT-4610-4 and RT-4611-3, whose notches sit progressively further out. RT-4602-6 has a similar early start with a much smaller, plain notch. RT-4611-7 suits deep eaves on coastal and West Indies homes and also works at gable ends or under a deck.
Material and fitting
Each RT-4611-7 is cellular PVC, hollow at the core, built using the patented approach HB Elements applies to all its tails. Its job is appearance alone.
Installation is by cleat and adhesive, both supplied. The tail can be cut shorter for a tight overhang and fixed over PVC soffit, stucco, wood or cement fiber, with little more than a clean surface needed before painting.
Using it with HB soffit panels
Over a nickel joint ceiling such as NJP-5-12, the long waves contrast with the straight grooves, and the tails conceal panel seams. HB fascia and frieze board complete the soffit ceilings range; tails are also sold separately.
Ordering and sizing help
Send elevations or sections in PDF to info@hbelementsinc.com and HB will propose sizes; questions can go to (954) 784-8216. The Rafter Tails Spec Sheet covers standard dimensions, and the full set of profiles is on the HB rafter tails page.
| soffit-systems-variations | 3 1/2″ x 5 1/2″ x 24″, 3 1/2″ x 5 1/2″ x 30″, 3 1/2″ x 5 1/2″ x 36″, 4 1/2″ x 9 1/2″ x 24″, 4 1/2″ x 9 1/2″ x 30″, 4 1/2″ x 9 1/2″ x 36″, 4″ x 7 1/2″ x 24″, 4″ x 7 1/2″ x 30″, 4″ x 7 1/2″ x 36″ |
|---|
