RT-4670-7

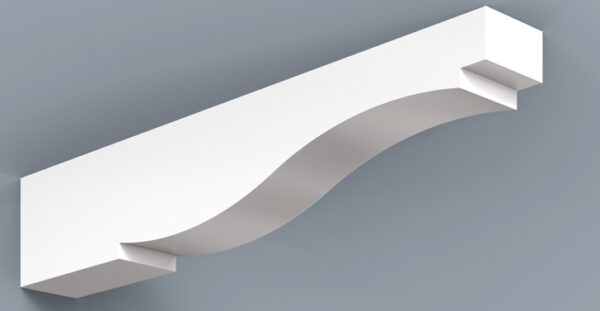

RT-4670-7 is a decorative PVC rafter tail with a long, flowing S-shaped curve along its underside, set between two small steps and finished with a squared tip. It brings a graceful, wave-like rhythm to exposed eaves and comes in nine sizes for use with the HB PVC Soffit System or on its own.

SKU: RT-4670-7 Category: Tag:
Description

RT-4670-7 PVC Rafter Tail

In a framed roof, each rafter that continues past the outside wall ends in a rafter tail, and together these ends support the soffit overhang. Houses that show their roof framing turn those ends into an ornamental feature, often cutting them into curved shapes. RT-4670-7 recreates one of these shaped ends in PVC. It is a decorative component that adds the look of exposed rafters without taking on any part of the roof’s structural work.

The S-curve profile

The top of RT-4670-7 is straight. Underneath, a small square step near the wall marks the start of a long reverse curve, a flowing S-shape (similar to the ogee curve used in traditional moldings) that sweeps up toward the end of the tail. A second small step then sets off a squared tip. The result is softer and more fluid than a stepped profile, and a row of these tails gives the eave a gentle, wave-like rhythm.

Because the curve runs most of the length of the tail, the profile is noticeable even from street level, which makes it a good choice where the roofline is meant to be a feature. It suits styles with a decorative, relaxed character, such as West Indies, Key West or Spanish Mediterranean homes, all styles HB Elements specializes in, and can be fitted at the eaves, as a lookout at a gable end or under a cantilevered deck. For a stepped look instead of a curve, compare RT-4490-5.

Material and fitting

RT-4670-7 is built with a hollow core from cellular PVC, using HB Elements’ patented fabrication system. As a decorative piece, it must not be relied on to support any part of the structure.

A cleat and adhesive come with each tail for installation, and the tail can be cut shorter on site where needed. RT-4670-7 can be mounted over stucco, wood, cement fiber or, most commonly, cellular PVC soffits. It is ready for paint with very little preparation, allowing it to be finished to match or contrast with the surrounding trim.

Working with the HB PVC Soffit System

A complete HB PVC Soffit System generally includes fascia, soffit panel, frieze board and rafter tails. The fascia runs along the roof edge, soffit panels cover the overhang from below, the frieze board neatly ends the soffit against the wall, and rafter tails such as RT-4670-7 project at intervals along the eave. Paired with HB V-groove or nickel-joint soffit panels, which imitate 1×6 tongue-and-groove boarding, the tails help the overhang look like a traditional timber-framed roof with tongue-and-groove decking. Each component can also be purchased and used separately.

Ordering and sizing help

For help choosing a size, send a PDF of your building plans to info@hbelementsinc.com and then call HB on (954) 784-8216 to talk them through with a representative. The Rafter Tails Spec Sheet sets out the standard sizes, the HB rafter tails page shows the other profiles available, and the HB Elements video library includes installation guidance.

Additional information
soffit-systems-variations3 1/2″ x 5 1/2″ x 24″, 3 1/2″ x 5 1/2″ x 30″, 3 1/2″ x 5 1/2″ x 36″, 4 1/2″ x 9 1/2″ x 24″, 4 1/2″ x 9 1/2″ x 30″, 4 1/2″ x 9 1/2″ x 36″, 4″ x 7 1/2″ x 24″, 4″ x 7 1/2″ x 30″, 4″ x 7 1/2″ x 36″
