RT-4505-4
RT-4505-4 is a PVC rafter tail with a long arched underside and an angled end that comes to a point at the bottom of the tip. The sweeping arch and sharp, raked end give it a bold, sculptural profile. Nine standard sizes for HB soffit systems or standalone use.
RT-4505-4 PVC Rafter Tail
Pairing a soft arch with a sharply raked end creates contrast within a single rafter tail. RT-4505-4 uses that combination to give eaves a sculpted, distinctive line. Like all HB tails, it is cellular PVC trim that recreates exposed rafter ends without forming part of the roof.
A sweeping arch and a raked tip

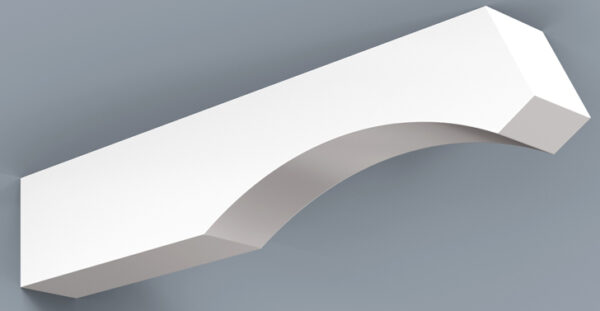

RT-4505-4 is full height for about a third of its length. With no step, the underside then sweeps up in a long arch that levels off past the midpoint and dips gently toward the end. The tip is cut at an angle, so instead of a square face it finishes in a pointed nose at the bottom.
Its arch is similar to RT-4501-5, which starts with a step and ends in a deep square block. The raked end makes RT-4505-4 the more dramatic of the two. It suits Spanish Mediterranean, coastal and Key West homes and can also be used for gable lookouts or beneath a deck.
Construction details
RT-4505-4 is hollow-core cellular PVC produced on HB Elements’ patented fabrication system. It is decorative and not intended to carry loads.
A cleat and adhesive are packed with each tail. It can be shortened on site and installed against cellular PVC soffit or over stucco, wood or cement fiber, needing little prep before paint.
Using it with HB panels
Over a V-groove ceiling such as VGP-5-12, the arched tails with their pointed ends add a striking rhythm, and they cover the panel joints. Add HB fascia and frieze board to complete the HB PVC soffit system, or order the tails separately.
Ordering and sizing help
HB can work out sizes from your drawings: email them as a PDF to info@hbelementsinc.com or phone (954) 784-8216. The Rafter Tails Spec Sheet lists standard dimensions, and the rafter tails page shows other profiles.
| soffit-systems-variations | 3 1/2″ x 5 1/2″ x 24″, 3 1/2″ x 5 1/2″ x 30″, 3 1/2″ x 5 1/2″ x 36″, 4 1/2″ x 9 1/2″ x 24″, 4 1/2″ x 9 1/2″ x 30″, 4 1/2″ x 9 1/2″ x 36″, 4″ x 7 1/2″ x 24″, 4″ x 7 1/2″ x 30″, 4″ x 7 1/2″ x 36″ |
|---|
