BKT-3403-5-8M

BKT-3403-5-8M is a tall, slender decorative bracket in cellular PVC, with a straight diagonal brace that forms a long triangular outline and a curved underside at the tip of the arm. It is twice as tall as it projects and comes in five sizes, from 16″ x 32″ to 36″ x 72″ (projection x height).

SKU: BKT-3403-5-8MHP-4202-8VP-4002-7 Category: Tag:
Description

BKT-3403-5-8M PVC Bracket

Not every traditional bracket was curved. Many were simple triangles, with a straight diagonal timber bracing the overhang back to the wall, a form that is both efficient and elegant. Brackets like this still appear on classic homes from the Coastal U.S. to the Caribbean, especially where tall walls meet shallow eaves. BKT-3403-5-8M interprets the triangular bracket in cellular PVC. It is decorative and, like most HB brackets, non-structural, while following the design and proportioning of a traditional wood bracket.

A tall, triangular profile

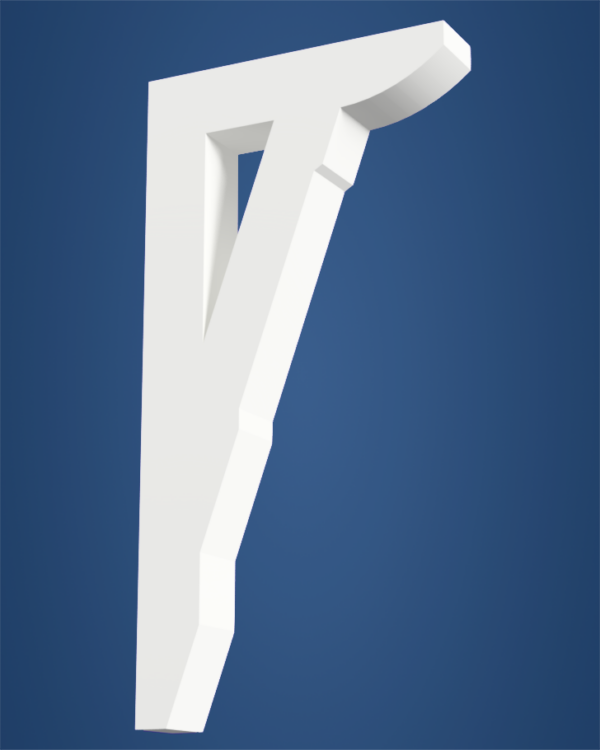

BKT-3403-5-8M is built to HB’s most upright standard proportion: its height is double its projection. A short top arm and a long wall leg are joined by a straight diagonal brace, giving the bracket a lean, triangular silhouette, and a long, narrow triangular opening runs down the upper part of the leg between the brace and the wall. The arm extends just beyond the brace and finishes in a smooth, curved underside, while the brace and the lower leg are finished with small steps and angled cuts down to a tapered foot.

Its slim, vertical form makes it well suited to tall walls, narrow piers, shallow overhangs and the spaces between windows, where a deeper bracket would look crowded. For curved, sweeping alternatives, see BKT-3221-5.5-7-3 or BKT-3212-4-6, or explore the wider HB PVC brackets range.

Main body and end profiles

HB brackets are a combination of one main body and two end profiles. The SKU BKT-3403-5-8MHP-4202-8VP-4002-7 identifies this bracket as the BKT-3403-5-8M main body with end profiles HP-4202-8 and VP-4002-7. With thousands of main bodies and end profiles in HB’s design tree, other end details can be discussed with the HB team.

Material, installation and finishing

BKT-3403-5-8M is manufactured in cellular PVC with HB Elements’ patented process. A cleat and adhesive are included for installation, and very little preparation is required before painting. Paint is optional, though most HB brackets are painted to hide caulking and nail-hole filler and to coordinate with the trim. This bracket is ornamental and should not be relied on for structural support.

Ordering and sizing help

Email a PDF of your plans to info@hbelementsinc.com and then call (954) 784-8216; an HB representative will help you confirm the size and end profiles. The Brackets Spec Sheet includes HB’s full bracket size chart, the PVC brackets page shows more designs, and the HB Elements video library has installation videos.

Additional information
thickness-projection-height3″ x 16″ x 32″, 3″ x 18″ x 36″, 4″ x 24″ x 48″, 4″ x 30″ x 60″, 5″ x 36″ x 72″
HPHP-4202-8
VPVP-4002-7
