RT-4200-1
RT-4200-1 is a PVC rafter tail with a plain, straight body and a smooth quarter-round end that curves from the underside up to the top edge. With no notches or steps, it is the simplest of HB’s round-ended tails and gives the eave a soft, tidy finish. Nine sizes for HB soffit systems or standalone use.
RT-4200-1 PVC Rafter Tail
A rounded rafter end softens a roofline in a way an angled cut cannot. RT-4200-1 offers that look in its most basic form: a plain timber-like body finished with a single smooth curve. It is a decorative cellular PVC tail that recreates exposed rafter ends; the structural rafters stay concealed behind the soffit.
A plain body with a quarter-round end

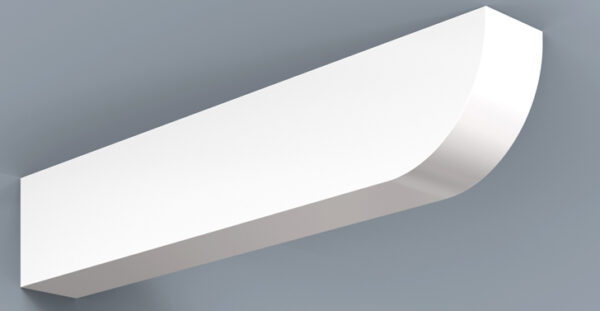

Top and bottom edges of RT-4200-1 run straight and parallel for most of its length. Close to the end, the underside turns upward in a convex, quarter-round curve that meets the top edge at the tip. There are no notches or steps anywhere along the profile.
If you would like a little more detail, RT-4204-1 adds a small square notch just before a similar rounded end, and RT-4205-5 places its notch further back. For a curve that sweeps the other way, rising in a long concave arc, see RT-4201-3. RT-4200-1 suits Craftsman, coastal and Florida Vernacular homes, and also works for gable lookouts and under cantilevered decks.
Construction
RT-4200-1 is manufactured by HB Elements from hollow-core cellular PVC using its patented fabrication system. It is a decorative trim piece and not a structural element.
A cleat and adhesive come with each tail. It can be trimmed shorter on site and fixed to cellular PVC soffit, stucco, wood or cement fiber, then painted after light preparation.
Pairing with HB soffit panels
A soft, rounded tail looks at home over a V-groove ceiling such as VGP-5-10, where the tails also cover the panel joints. Add HB fascia and frieze board to complete the PVC soffit system, or buy RT-4200-1 on its own.
Ordering and sizing help
Email a PDF of your plans to info@hbelementsinc.com or call (954) 784-8216 and HB will help you size the tails. Standard dimensions are in the Rafter Tails Spec Sheet, and every design is on the rafter tails page.
| soffit-systems-variations | 3 1/2″ x 5 1/2″ x 24″, 3 1/2″ x 5 1/2″ x 30″, 3 1/2″ x 5 1/2″ x 36″, 4 1/2″ x 9 1/2″ x 24″, 4 1/2″ x 9 1/2″ x 30″, 4 1/2″ x 9 1/2″ x 36″, 4″ x 7 1/2″ x 24″, 4″ x 7 1/2″ x 30″, 4″ x 7 1/2″ x 36″ |
|---|
