RT-4201-3
RT-4201-3 is a PVC rafter tail whose underside sweeps upward in a long, smooth concave curve, ending at a short square tip. With no notch or step, the curve runs uninterrupted, giving a graceful, flowing line along the eave. Nine sizes are available for HB soffit systems or for use on their own.
RT-4201-3 PVC Rafter Tail
Curved rafter tails come in two broad types: those with a convex, rounded end and those with a concave sweep that scoops up from the underside. RT-4201-3 is the second kind, and in its purest form, with nothing to interrupt the curve. It is a decorative tail in cellular PVC that gives eaves the look of exposed rafter ends while the roof framing stays hidden.
An uninterrupted concave sweep

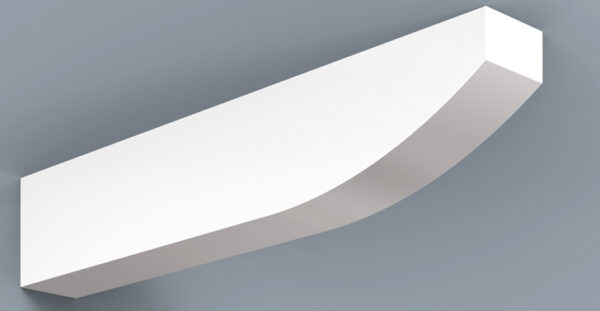

RT-4201-3 is full depth with a straight top for roughly the first third of its length. From there the underside curves gently upward in a long concave arc, steepening toward the end, and finishes at a short vertical face beneath the top edge. The curve has no notch or step along the way.
Two close relatives add a small notch before the curve: RT-4202-3 places it partway along, and RT-4202-6 sets it near the wall. For a rounded, convex end instead, see RT-4200-1. RT-4201-3 is a good choice for coastal, Mediterranean and West Indies homes where a soft, flowing eave line is wanted, and also works for gable lookouts and cantilevered decks.
Material and fixing
HB Elements makes the tail from hollow-core cellular PVC with its patented fabrication process. It is ornamental and must not carry structural loads.
Each tail includes a cleat and adhesive for mounting. It can be cut down on site and installed over cellular PVC soffit, stucco, wood or cement fiber. Little prep is needed before painting.
With HB soffit panels
Over a ceiling of HB panels, such as the NJP-5-10 nickel joint panel, the curved tails cover panel joints and soften the straight lines of the grooves. HB fascia and frieze board complete the soffit system; all parts are also sold separately.
Ordering and sizing help
Send HB your drawings as a PDF at info@hbelementsinc.com or phone (954) 784-8216 to choose sizes and quantities. Standard dimensions are in the Rafter Tails Spec Sheet; see the full range on the HB rafter tails page.
| soffit-systems-variations | 3 1/2″ x 5 1/2″ x 24″, 3 1/2″ x 5 1/2″ x 30″, 3 1/2″ x 5 1/2″ x 36″, 4 1/2″ x 9 1/2″ x 24″, 4 1/2″ x 9 1/2″ x 30″, 4 1/2″ x 9 1/2″ x 36″, 4″ x 7 1/2″ x 24″, 4″ x 7 1/2″ x 30″, 4″ x 7 1/2″ x 36″ |
|---|
