RT-4270-4

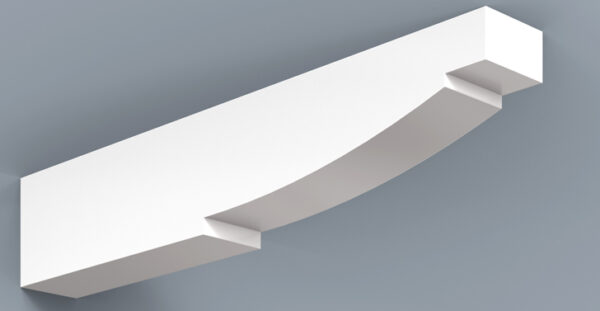

RT-4270-4 is a PVC rafter tail whose concave arc starts at a slanted step about a third along and ends at a crisp notch, leaving a small ledge beneath the square tip. Cuts at both ends of the arc give it a sharper, more tailored look than a plain curve. Available in nine sizes for HB soffit systems or standalone use.
RT-4270-4 PVC Rafter Tail
A curved rafter tail can feel soft; a clean cut at each end of the curve sharpens it up. RT-4270-4 frames its arc between a step and a notch, so the shape reads clearly against a light soffit. HB makes it in cellular PVC as a purely decorative piece that gives eaves the appearance of exposed rafter ends.
An arc between two cuts
Starting from the wall, RT-4270-4 runs at full height for roughly a third of its length. A small slanted step then begins a concave arc that rises toward the end. Before reaching the top, the arc stops at a distinct notch, leaving a short level ledge and a square tip beneath the straight top edge.

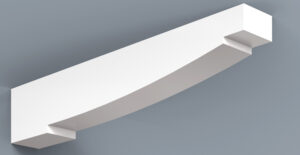

The notch is the difference from RT-4240-4, whose arc simply levels off at the tip. For the same arc and notch with the step moved close to the wall, choose RT-4270-8. RT-4270-4 suits coastal, West Indies and Spanish Mediterranean homes, and also serves as a gable lookout or a detail beneath a cantilevered deck.
Construction
This is a hollow-core cellular PVC tail made by HB Elements on its patented fabrication system; it carries no structural rating and should be treated as trim.
A cleat and adhesive are supplied with each piece. The tail can be shortened on the job and installed against cellular PVC soffit or over stucco, wood or cement fiber, with very little prep needed before paint.
Soffit panel pairing
The clean cuts of RT-4270-4 contrast nicely with a smooth ceiling such as SMP-5-12. Fitted over the panels, the tails also conceal their seams. HB fascia and frieze board finish the soffit system, and the tails can be ordered alone.
Ordering and sizing help
To get a size recommendation, send HB a PDF of your plans at info@hbelementsinc.com or call (954) 784-8216. Standard dimensions are collected in the Rafter Tails Spec Sheet, and HB’s other designs are on the rafter tails page.
| soffit-systems-variations | 3 1/2″ x 5 1/2″ x 24″, 3 1/2″ x 5 1/2″ x 30″, 3 1/2″ x 5 1/2″ x 36″, 4 1/2″ x 9 1/2″ x 24″, 4 1/2″ x 9 1/2″ x 30″, 4 1/2″ x 9 1/2″ x 36″, 4″ x 7 1/2″ x 24″, 4″ x 7 1/2″ x 30″, 4″ x 7 1/2″ x 36″ |
|---|
