RT-4480-2

RT-4480-2 is a PVC rafter tail that keeps its full depth for about two-thirds of its length, then steps up into a hollow cove that rises to a small notch beneath the square tip. Concentrating the detail at the end gives a solid tail with a neatly carved finish. Nine standard sizes for HB soffit systems or standalone use.

SKU: RT-4480-2 Category: Tag:
Description

RT-4480-2 PVC Rafter Tail

A step, a cove and a notch together make a rich end detail, and grouping them near the tip keeps the rest of the rafter tail calm and solid. RT-4480-2 is laid out this way. Made in cellular PVC, it is ornamental trim that recreates exposed rafter ends without structural duty.

A carved end on a solid body

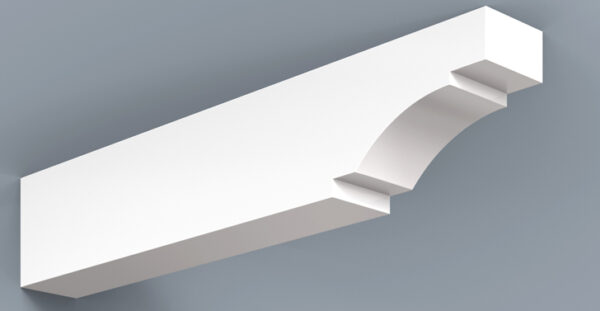

RT-4480-2 runs plain and full height for roughly two-thirds of its length. A small slanted step then lifts the underside, and directly after it a concave cove curves upward to a small notch, leaving a short square section at the tip below the straight top edge.

It is a compact cousin of RT-4481-5, which starts its step earlier and adds a flat run before a similar cove. For a cove and notched tip with no step at all, see RT-4460-1. RT-4480-2 suits Spanish Mediterranean, coastal and Craftsman homes and can also be used at gable ends or under cantilevered decks.

Material

HB Elements makes RT-4480-2 in hollow-core cellular PVC using its patented fabrication system. It is purely decorative.

A cleat and adhesive are provided. Cut the tail to length on site if needed and fix it over cellular PVC soffit, stucco, wood or cement fiber; very little prep is needed before painting.

Soffit pairing

The carved ends stand out over a smooth ceiling such as SMP-5-10, while the tails mask the seams between panels. Add HB fascia and frieze board to complete the HB PVC soffit system, or order the tails separately.

Ordering and sizing help

Send your drawings to info@hbelementsinc.com as a PDF or phone (954) 784-8216 to agree sizes with HB. Standard sizing is in the Rafter Tails Spec Sheet; related designs are on the HB rafter tails page.

Additional information
soffit-systems-variations3 1/2″ x 5 1/2″ x 24″, 3 1/2″ x 5 1/2″ x 30″, 3 1/2″ x 5 1/2″ x 36″, 4 1/2″ x 9 1/2″ x 24″, 4 1/2″ x 9 1/2″ x 30″, 4 1/2″ x 9 1/2″ x 36″, 4″ x 7 1/2″ x 24″, 4″ x 7 1/2″ x 30″, 4″ x 7 1/2″ x 36″
