RT-4482-3
RT-4482-3 is a PVC rafter tail that holds full depth to just short of its midpoint, then steps up into a short, steep bowed curve that ends at a notch under the square tip. The compact end detail keeps the tail looking solid. Nine standard sizes for HB soffit systems or standalone use.
RT-4482-3 PVC Rafter Tail
A short, steep curve at the end of a long, solid rafter gives a strong, purposeful look. RT-4482-3 uses that proportion, reserving its shaping for the outer half. It is a decorative tail in cellular PVC that reproduces the look of exposed rafter ends; the real framing is hidden above the soffit.
A solid body and a quick rise

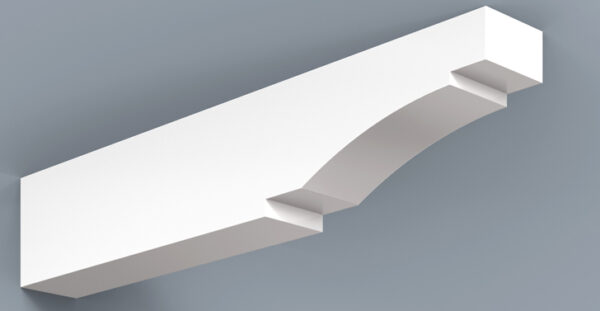

RT-4482-3 is plain and full height for a little under half its length. A deep slanted step then lifts the underside, and a short bowed curve climbs steeply before easing into a notch, which leaves a square ledge beneath the tip.
It sits between two related tails: RT-4470-3 starts the same sequence slightly further out, and RT-4483-5 begins earlier with a gentler, longer curve. RT-4482-3 suits larger coastal and British West Indies homes, and also works as a gable lookout or under a cantilevered deck.
How it is made
RT-4482-3 is produced by HB Elements from hollow-core cellular PVC on its patented fabrication system. It is non-structural trim.
The tail comes with a cleat and adhesive. It can be shortened on site and mounted on cellular PVC soffit, stucco, wood or cement fiber, then painted after minimal preparation.
Completing the eave
Run RT-4482-3 over HB panels such as the NJP-5-08 nickel joint panel to hide panel seams and add a sturdy rhythm to the overhang. HB fascia and frieze board complete the soffit system; each part is also sold alone.
Ordering and sizing help
For sizing, email PDF plans to info@hbelementsinc.com or call HB on (954) 784-8216. The Rafter Tails Spec Sheet has standard dimensions, and the rafter tails collection shows more profiles.
| soffit-systems-variations | 3 1/2″ x 5 1/2″ x 24″, 3 1/2″ x 5 1/2″ x 30″, 3 1/2″ x 5 1/2″ x 36″, 4 1/2″ x 9 1/2″ x 24″, 4 1/2″ x 9 1/2″ x 30″, 4 1/2″ x 9 1/2″ x 36″, 4″ x 7 1/2″ x 24″, 4″ x 7 1/2″ x 30″, 4″ x 7 1/2″ x 36″ |
|---|
