RT-4483-8

RT-4483-8 is a PVC rafter tail with a slanted step close to the wall, a short flat run and a long bowed curve that rises to a notch under the square tip. Starting the detail early stretches the curve across most of the tail for a long, layered silhouette. Nine standard sizes for HB soffit systems or standalone use.

SKU: RT-4483-8 Category: Tag:
Description

RT-4483-8 PVC Rafter Tail

On a wide overhang, a curve that runs almost the whole length of a rafter tail looks graceful from the ground. RT-4483-8 begins its shaping near the wall to make that possible. It is cellular PVC trim that gives eaves the appearance of exposed rafter ends while playing no part in the roof structure.

An early start and a long curve

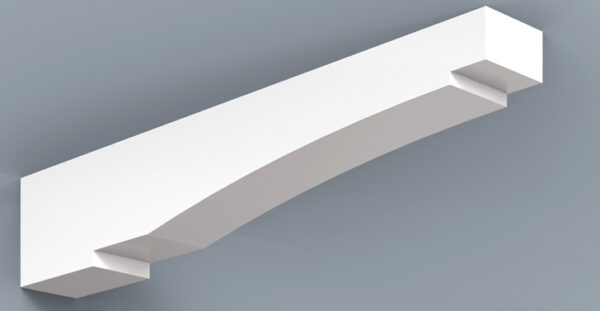

Only about the first fifth of RT-4483-8 is full height. A slanted step then lifts the underside, a short flat run follows, and a long bowed curve climbs gradually across the rest of the tail, ending at a notch and a square tip under the straight top edge.

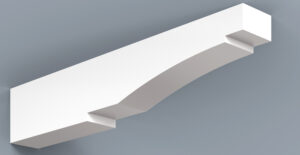

It is the long version of RT-4483-5, which starts the same sequence about a third of the way out. For a long curve that rises directly from a deeper step, see RT-4470-6. RT-4483-8 suits deep, low eaves on coastal and West Indies homes and also works at gable ends or below a cantilevered deck.

Material and fitting

HB Elements produces RT-4483-8 in hollow-core cellular PVC using its patented fabrication process. It is a decorative component, not a structural one.

A cleat and adhesive are included. The tail can be cut down on site and installed over cellular PVC soffit, stucco, wood or cement fiber, needing little preparation before paint.

Using it with HB soffit panels

Over a smooth ceiling such as SMP-5-12, the long curves become the main feature of the eave, and the tails cover the panel seams. HB fascia and frieze board complete the soffit ceilings range; tails are also sold individually.

Ordering and sizing help

Share your drawings with HB as a PDF at info@hbelementsinc.com or call (954) 784-8216 to settle sizes. Standard measurements are in the Rafter Tails Spec Sheet, and the HB rafter tails page shows every profile.

Additional information
soffit-systems-variations3 1/2″ x 5 1/2″ x 24″, 3 1/2″ x 5 1/2″ x 30″, 3 1/2″ x 5 1/2″ x 36″, 4 1/2″ x 9 1/2″ x 24″, 4 1/2″ x 9 1/2″ x 30″, 4 1/2″ x 9 1/2″ x 36″, 4″ x 7 1/2″ x 24″, 4″ x 7 1/2″ x 30″, 4″ x 7 1/2″ x 36″
