RT-4693-5

RT-4693-5 is a PVC rafter tail with two small steps set close together about a third of the way out, followed by an S-shaped wave and a notch under the square tip. Three cuts in all, with the steps paired. Nine standard sizes for HB soffit systems or standalone eaves.

SKU: RT-4693-5 Category: Tags: ,
Description

RT-4693-5 PVC Rafter Tail

RT-4693-5 groups two steps side by side so they read as a single stepped band, then lets a wave carry the line to a notched end. The pairing gives the tail a terraced look partway along. It is a decorative cellular PVC tail made to resemble exposed rafter ends, not to carry the roof.

Paired steps and a notched end

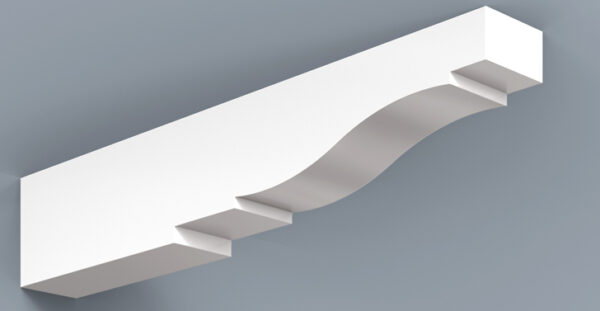

Roughly a third of the way from the wall, the underside of RT-4693-5 drops two small steps one right after the other. Past them the profile runs into an S-shaped wave that rises toward the end and stops at a notch cut beneath the square tip, under the straight top edge.

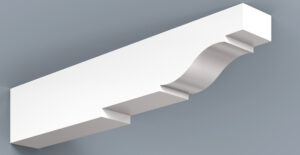

On RT-4690-4 the same three cuts are spread out, with the second step past the midpoint; here the two steps sit tight together. RT-4622-6 also clusters small steps but adds a hooked notch and ends in a slim tip. The terraced detail fits Spanish Revival, Mediterranean and Florida coastal homes.

Material and how it installs

RT-4693-5 is formed in cellular PVC around a hollow core, using HB Elements’ patented production. It is a decorative element with no structural role.

The tail is packed with a cleat and adhesive. For a tighter overhang, cut it to length first, then fix it to PVC soffit, stucco, wood or cement fiber. It needs only a clean surface before paint.

Pairing with HB soffit panels

Over a smooth soffit such as SMP-5-10, the paired steps throw crisp shadow lines against a plain background, while the tails hide the panel joints. HB’s soffit ceilings range adds fascia and frieze board, and the tail can be ordered on its own.

Sizing and orders

Send PDF elevations or sections to info@hbelementsinc.com for a size recommendation, or call (954) 784-8216. The Rafter Tails Spec Sheet covers standard dimensions; compare the three-cut designs on the HB rafter tails page.
