BKT-3221-5.5-7-6

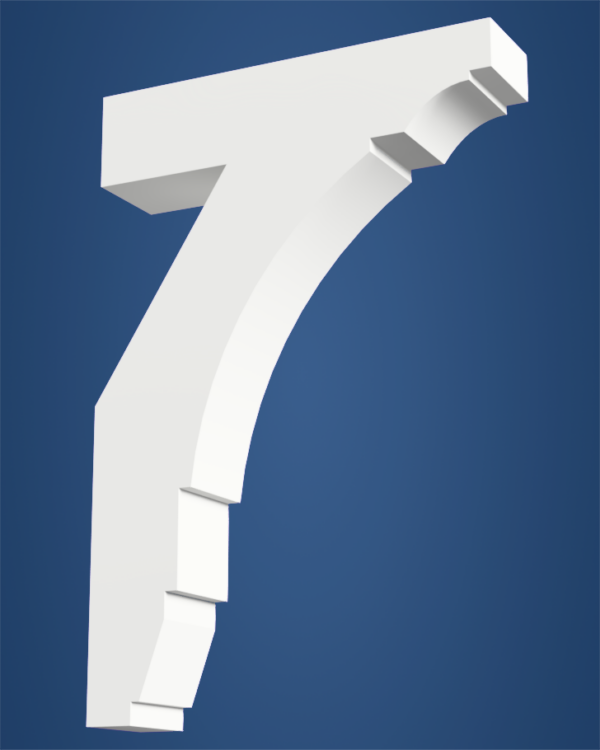

BKT-3221-5.5-7-6 is a decorative cellular PVC bracket with a deep, sweeping open-back body and detailing at both ends: a step, cove and second step under the arm tip, and a double-stepped foot ending in a small squared toe. It is 1.5 times taller than its projection and comes in five sizes from 16″ x 24″ to 42″ x 63″ (projection x height).
BKT-3221-5.5-7-6 PVC Bracket
The most elaborate timber brackets were shaped at both ends, so the detail at the eave was echoed at the base. That layered craftsmanship is part of what gives classic homes from the Coastal U.S. to the Caribbean their character. BKT-3221-5.5-7-6 offers the same layered look in cellular PVC. It is a decorative bracket, non-structural like most HB brackets, and it keeps to the design and proportioning of a traditional load-bearing wood bracket.
Detail at both ends
BKT-3221-5.5-7-6 shares the deep-armed BKT-3221-5.5-7 main body, which curves from a heavy top arm into the wall leg and leaves an open back beneath the arm. Its ends are the most detailed in this group. Under the tip of the arm, a small step leads into a concave cove, and a second step closes the profile at the squared end. At the bottom, the leg steps in twice before tapering at a shallow angle to a short, squared toe.
With shaped profiles at the top and bottom, it is a strong choice where brackets are a focal point, such as a front porch, a main entrance or a prominent gable. If you prefer a simpler finish at one end, compare BKT-3221-5.5-7-5 (coved tip, plain tapered foot), BKT-3221-5.5-7-4 (flared foot) and BKT-3221-5.5-7-3 (square-cut tip). Other styles are shown in the HB PVC brackets collection.
Main body and end profiles
Each HB bracket is made up of a main body and two end profiles. For this product, the SKU BKT-3221-5.5-7-6-HP-4461-5-VP-4081-7 combines the BKT-3221-5.5-7 main body with the HP-4461-5 and VP-4081-7 end profiles. HB’s design tree includes thousands of main bodies and end profiles, and the HB team can help if you need a different combination.
Material, installation and finishing
BKT-3221-5.5-7-6 is produced from cellular PVC using HB Elements’ patented manufacturing process. It is fitted with the supplied cleat and adhesive, and the surface is ready for paint with very little preparation. Painting is optional, but most HB brackets are painted to cover caulking and nail-hole filler and to match the rest of the trim. The bracket is decorative only and must not be used as a structural support.
Ordering and sizing help
Send a PDF of your plans to info@hbelementsinc.com and call (954) 784-8216 so an HB representative can help you choose the size and confirm the end profiles. You can also refer to the Brackets Spec Sheet, compare more HB PVC bracket designs, and watch installation videos in the HB Elements video library.
| thickness-projection-height | 3″ x 16″ x 24″, 4″ x 24″ x 36″, 5″ x 30″ x 45″, 6″ x 36″ x 54″, 6″ x 42″ x 63″ |
|---|---|
| HP | HP-4461-5 |
| VP | VP-4081-7 |
