RT-4680-2

RT-4680-2 is a PVC rafter tail that runs plain for most of its length, drops a slanted step past the midpoint and finishes with a short S-curve and a shallow notch under the square tip. Nine standard sizes for HB soffit systems or standalone eaves.

SKU: RT-4680-2 Category: Tag:
Description

RT-4680-2 PVC Rafter Tail

RT-4680-2 packs all of its detail into the outer end: a step, a compact curve and a fine notch, one after another. Everything closer to the wall is left as a clean, straight member. The result is a decorative cellular PVC tail that reads as a simple exposed rafter with a finished, carved end.

Three details at the end

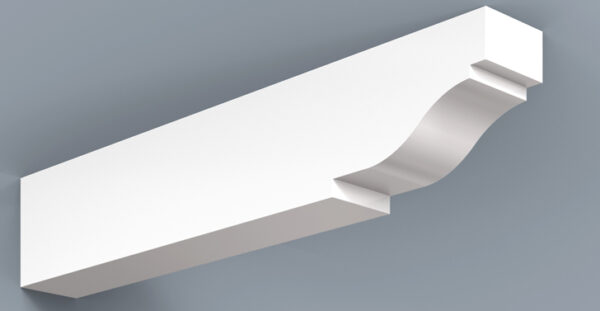

The underside of RT-4680-2 stays straight until well past halfway, where a slanted step breaks the line. A brief flat leads into a short S-curve that climbs toward the end, and a shallow, narrow notch is cut just beneath the square tip, under the straight top edge.

Take away the notch and you have RT-4620-2, which ends cleanly. RT-4683-2 follows almost the same outline with a deeper notch at the tip. The small, tidy end detail works on bungalow, cottage and coastal homes, and on porch roofs where the eave is seen up close.

Material and fixing

HB Elements produces RT-4680-2 in cellular PVC with a hollow core through its patented process. It is a finish element only and supports nothing.

Each tail ships with its cleat and adhesive. A shallow eave may need the tail cut back first; it then mounts over PVC soffit, stucco, wood or cement fiber and takes paint after a light clean.

Fit with HB soffit ceilings

Set against a V-groove ceiling such as VGP-5-10, the straight tail bodies follow the groove lines, the carved ends show at the fascia and the tails cover the panel seams. Fascia and frieze board are available within HB’s soffit ceilings range, and the tail can be ordered by itself.

Request sizing help

Send PDF elevations or sections to info@hbelementsinc.com and HB will propose a size, or call (954) 784-8216. The Rafter Tails Spec Sheet gives standard dimensions; side-by-side designs are on the HB rafter tails page.

Additional information
soffit-systems-variations3 1/2″ x 5 1/2″ x 24″, 3 1/2″ x 5 1/2″ x 30″, 3 1/2″ x 5 1/2″ x 36″, 4 1/2″ x 9 1/2″ x 24″, 4 1/2″ x 9 1/2″ x 30″, 4 1/2″ x 9 1/2″ x 36″, 4″ x 7 1/2″ x 24″, 4″ x 7 1/2″ x 30″, 4″ x 7 1/2″ x 36″
