RT-4680-6

RT-4680-6 is a PVC rafter tail with a small step near the wall, a long, almost level run and an S-curve in the outer third that ends at a notch under the square tip. Available in nine standard sizes for HB soffit systems or on its own.

SKU: RT-4680-6 Category: Tag:
Description

RT-4680-6 PVC Rafter Tail

RT-4680-6 marks both ends of its underside: a modest step close to the building and a notch at the tip, with a calm run and a single wave between them. The spacing gives the tail a long, measured look suited to wide overhangs. It is a cellular PVC decorative piece that imitates exposed rafters.

Step, long run, curve, notch

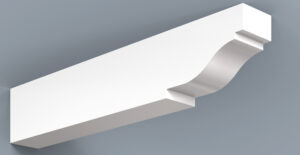

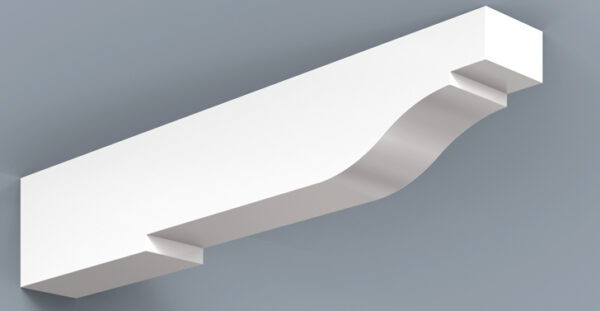

About a quarter of the way out, RT-4680-6 drops a small step from its underside. A long run follows with only a slight rise, then the line turns into an S-curve across the outer third and finishes at a notch cut below the square tip, under the straight top edge.

Its outline sits very close to RT-4670-7, which also pairs a step near the wall with a notched tip. RT-4683-7 starts its rise right after the step instead of holding a long run. Long tails like this suit deep eaves on Florida, Caribbean and West Indies-style homes and covered outdoor living areas.

Build and installation

The body is hollow-core cellular PVC, shaped by HB Elements on its patented production method. RT-4680-6 is decorative and must not be loaded.

Fixing needs only the cleat and adhesive packed with the tail. Cut it to suit a shorter overhang, attach it to cellular PVC soffit, stucco, wood or cement fiber, and paint once the surface is clean.

Soffit panel pairing

Beneath a slatted nickel joint ceiling like NJP-SL-5-10, the long, quiet run of each tail sits comfortably against the panel lines, and the tails hide the seams. The HB soffit ceilings range also covers fascia and frieze board; tails can be purchased alone.

Talk to HB about sizing

Email elevations or sections as a PDF to info@hbelementsinc.com for a recommendation, or ring (954) 784-8216. Standard sizes are detailed in the Rafter Tails Spec Sheet, and every design appears on the HB rafter tails page.

Additional information
soffit-systems-variations3 1/2″ x 5 1/2″ x 24″, 3 1/2″ x 5 1/2″ x 30″, 3 1/2″ x 5 1/2″ x 36″, 4 1/2″ x 9 1/2″ x 24″, 4 1/2″ x 9 1/2″ x 30″, 4 1/2″ x 9 1/2″ x 36″, 4″ x 7 1/2″ x 24″, 4″ x 7 1/2″ x 30″, 4″ x 7 1/2″ x 36″
